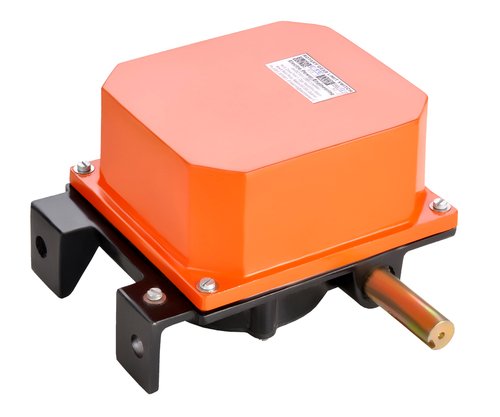

Rotary gear Limit switch are useful for the reversing action for the hoist, winches and in Rolling mills used in Heavy industries such as Power plant, steel plant, Cement Plant, Heavy machinery Workshop etc.
Function: Limit Switch is to stop the mechanism of drive at the extreme clock wise / anti clock wise position. These rotary limit switches are particularly suited for use on reversing drives such as electric hoists, winches, over head cranes and traverse.
| Body Material | Aluminum Pressure Die cast |
|---|---|
| GEAR RATIO | 48:1 and 60:1 |
| DRIVE | Warm Drive |
| AMPERE CAPACITY | Up to 40 amp |
| RATED VOLTAGE | 500 V AC |
| CONTACT MATERIAL | Silver Cadmium |
| CAM SETTING | Adjustable |
| NO OF CONTACT | 2 NC & 4 NC |
Rotary Gear Limit Switch is basically consists of heavy duty worm gear drive. The worm gear unit is built in a cast housing fitted on main body of Limit Switch. The cam shaft which extends from behind the gear in to housing accommodates the cams adjustable actuators which are fitted on the cams. These actuators strikes the contact finger of respective contacts
