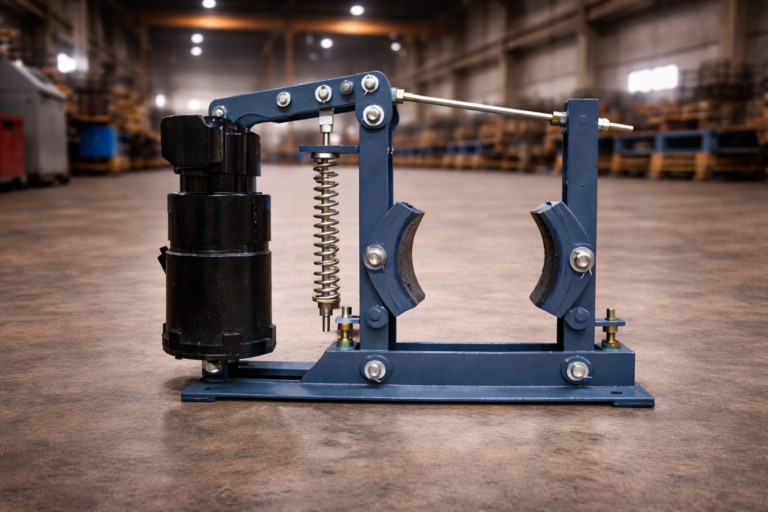

Electro Hydraulic Thruster Brake

This is the smallest thruster in the range. A compact 60Watt, 2800 rpm, 415V/50Hz/3-ph, non-ventilated motor is directly mounted on the top of a moving aluminum piston. A cast iron tank containing the brake fluid acts as the cylinder. The piston separates the cylinder into high pressure and low-pressure chambers. The bi-directional impeller is mounted directly on the motor shaft. The upper clevis is integral with the top end shield of the motor and the lower clevis is on the bottom of the tank cover.
